概述:
绝对式传感器
行程范围:50 至2500mm
直接模拟输出(RK-5 N/K/E)
反向模拟输出(RK-5 O/I/R)
工作温度:-40...+105°C
抗振性(DIN IEC68T2/6 25g)
功率范围:10VDC至32VDC电流输出
功率范围8VDC至32VDC电压输出
概述:
绝对式传感器
行程范围:50 至2500mm
直接模拟输出(RK-5 N/K/E)
反向模拟输出(RK-5 O/I/R)
工作温度:-40...+105°C
抗振性(DIN IEC68T2/6 25g)
功率范围:10VDC至32VDC电流输出
功率范围8VDC至32VDC电压输出
产品描述:
非接触线性位移变送器采用了杰佛伦创新的 ONDA磁致伸缩技术,从而获得更长的使用寿命。非接触线性位移变送器采用了杰佛伦创新的ONDA磁致伸缩技术,从而获得更长的使用寿命。

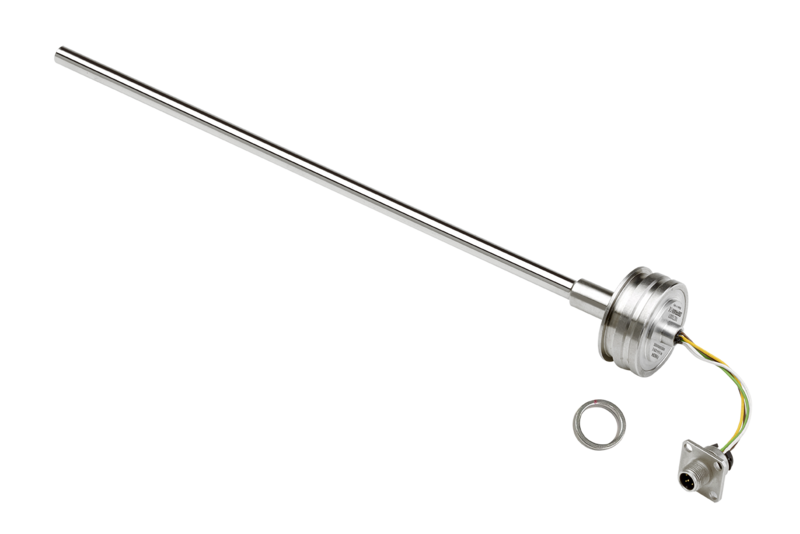

Gefran的专利ONDA技术实现了便于安装的紧凑型模块化结构。RK-5是一种带法兰连接的磁致伸缩位置传感器,完整安装在油压缸内。
设计独特,配备各种不同的光标配置,安装方便,完全兼容油缸制造商的各种规格。
工作温度范围从-40到 +105°C,工作压力可达350巴,良好的耐震动性(25g)和耐冲击性(100g) 为重型用途所需提供必要的强度(如:移动式油压)
高性能的测量变送定义为线性、磁滞和可重复性。
信号为电流和电压输出模型的模拟信号。
F066687 RK-5-A-A-0050-E 0000X060X00X0XX
F059913 RK-5-A-A-0050-N 0000X060X00X0XX
F061116 RK-5-A-A-0100-E 0000X060X00X0XX
F059914 RK-5-A-A-0100-N 0000X060X00X0XX
F066892 RK-5-A-A-0100-N 0000X150X00X0XX
F060603 RK-5-A-A-0130-N 0000X060X00X0XX
F060033 RK-5-A-A-0150-E 0000X060X00X0XX
F059994 RK-5-A-A-0150-K 0000X060X00X0XX
F059995 RK-5-A-A-0200-E 0000X060X00X0XX
F064100 RK-5-A-A-0200-N 0000X060X00X0XX
F059996 RK-5-A-A-0225-E 0000X060X00X0XX
F060034 RK-5-A-A-0225-N 0000X060X00X0XX
F060035 RK-5-A-A-0300-E 0000X060X00X0XX
F068078 RK-5-A-A-0300-E 0000X240X00X0XX
F059997 RK-5-A-A-0300-K 0000X060X00X0XX
F059915 RK-5-A-A-0300-N 0000X060X00X0XX
F069084 RK-5-A-A-0400-E 0000X150X00X0XX
F069427 RK-5-A-A-0450-N 0000X150X00X0XX
F066293 RK-5-A-A-0500-E 0000X240X00X0XX
F066771 RK-5-A-A-0600-E 0000X060X00X0XX
F066292 RK-5-A-A-0600-E 0000X240X00X0XX
F060064 RK-5-A-A-0600-N 0000X060X00X0XX
F068872 RK-5-A-A-0700-E 0000X060X00X0XX
F063224 RK-5-A-A-0700-E 0000X150X00X0XX
F068877 RK-5-A-A-0700-N 0000X060X00X0XX
F066685 RK-5-A-A-0750-E 0000X060X00X0XX
F060065 RK-5-A-A-0800-N 0000X060X00X0XX
F059916 RK-5-A-A-1000-N 0000X060X00X0XX
F066291 RK-5-A-A-1500-E 0000X240X00X0XX
F060066 RK-5-A-A-1500-N 0000X060X00X0XX
F064390 RK-5-A-A-1500-N 0000X240X00X0XX
F065573 RK-5-A-A-2000-E 0000X240X00X0XX
F060067 RK-5-A-A-2000-N 0000X060X00X0XX
F068008 RK-5-A-A-2250-E 0000X240X00X0XX
F059917 RK-5-A-A-2500-N 0000X060X00X0XX
F069411 RK-5-A-B-0050-E 0000X240X00X0XX
F062559 RK-5-A-F-0050-E 0000X000X00X0XX
F057220 RK-5-A-F-0050-N 0000X000X00X0XX
F068014 RK-5-A-F-0100-E 0000X000X00X0XX
F057221 RK-5-A-F-0100-N 0000X000X00X0XX
F059998 RK-5-A-F-0150-N 0000X000X00X0XX
F060002 RK-5-A-F-0300-E 0000X000X00X0XX
F057222 RK-5-A-F-0300-N 0000X000X00X0XX
F060004 RK-5-A-F-0400-K 0000X000X00X0XX
F062262 RK-5-A-F-0600-E 0000X000X00X0XX
F061744 RK-5-A-F-0600-N 0000X000X00X0XX
F063858 RK-5-A-F-0700-E 0000X000X00X0XX
F057223 RK-5-A-F-1000-N 0000X000X00X0XX
F069554 RK-5-A-F-1750-E 0000X000X00X0XX
F057224 RK-5-A-F-2500-N 0000X000X00X0XX
