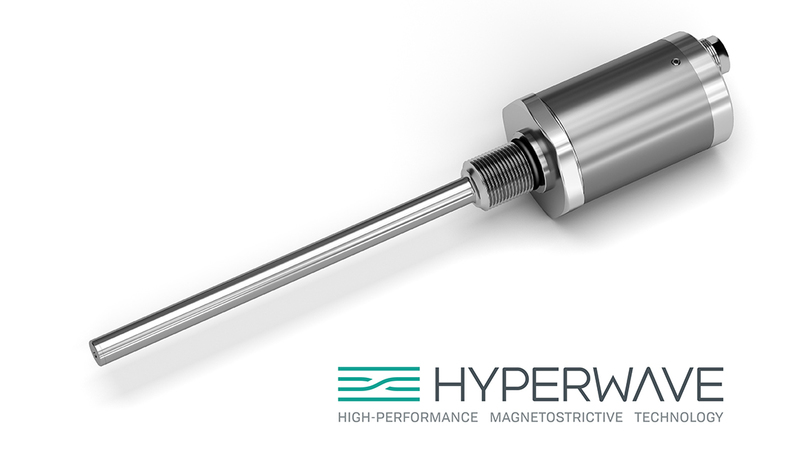

GFRAN磁致伸缩 WRA-S Contactless magnetostrictive linear position transducer

Contactless linear position transducer with HYPERWAVE magnetostrictive technology with RS422-SSI digital output interface. Housing closure with removable ring nut to allow the whole electronics and sensing element replacement. The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited life. High accuracy of the mesurement with reference to the non linearity, repeatability and hysteresis. High resistance to vibrations, mechanical shocks for use in a harsh industrial environment.

• Optimized mechanical structure

• Strokes from 50 to 4000 mm

• Wide range of connectors for the electrical connection

• Rod, nipple, exagonal flange AISI 316

• Power supply 10....32 Vdc

• Resistance to vibration (DIN IEC68T2/6 15g)

• Protection IP67

• Work temperature: -30°…+90°C

• Synchronous Serial Interface direct to controllers

• Output data resolution available from 0.5 to 40μm

• Data format: binary or Gray code; incremental/decremental

• Electromagnetic compatibility EMC 2014/30/EU

• Compliant to the directive RoHS 2011/65/EU
