TECHNICAL DATA

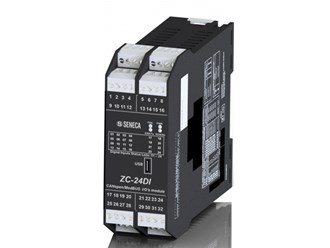

| ORDER CODE : | ZC-24DI |
| DESCRIPTION: | 24 CH digital input CANopen / ModBUS |
| COMMUNICATION: | CANopen 401 v.2.01 RS485 two wires, ModBUS RTU slave protocol, 64 max nodes |
| POWER SUPPLY: | 10..40 Vdc, 19..28 Vac |
| MAX POWER CONSUMPTION: | 2,5 W |
| INSULATION: | 1,5 kVac (3 way) |
| RESPONSE TIME: | 2,5 ms |
| OPERATING TEMPERATURE: | -10..+65°C |
| DIMENSION: | 35 x 100 x 112 mm |
| CHANNELS: | 24 |
| POLARITY: | EN 61131-2 sink (npn) |
| COUNTERS: | 8 @ 32 bit (max 10 kHz) |
| PULSE WIDTH: | Min 250 μs |
| TPDO: | < 1 ms |
SHIPPING AND EXPORT INFORMATION
| PRODUCT CODE | ZC-24DI |
| GROSS WEIGHT kg | 0,25 |
| ORIGIN | IT |
| TARIC | 85389091 |
| ECCN | 5A991 |
