TECHNICAL DATA

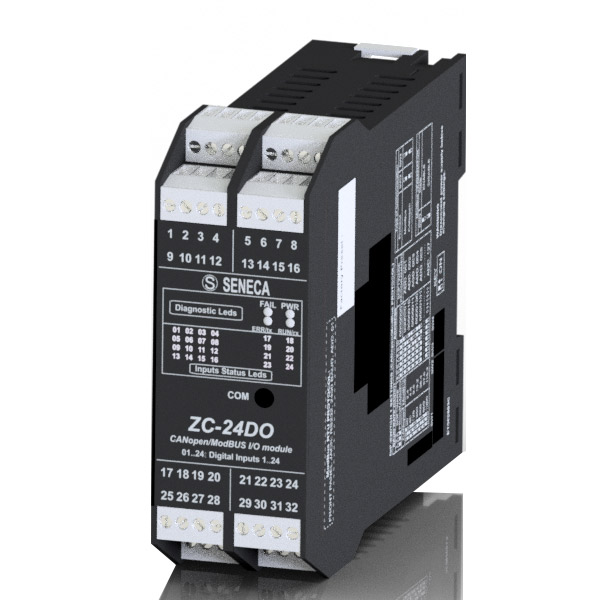

| ORDER CODE : | ZC-24DO |
| DESCRIPTION: | 24 CH digital output CANopen / ModBUS |
| COMMUNICATION: | CANopen 401 v.2.01 RS485 two wires, ModBUS RTU slave protocol, 64 max nodes |
| POWER SUPPLY: | 10..40 Vdc, 19..28 Vac |
| MAX POWER CONSUMPTION: | 2,5 W |
| INSULATION: | 1,5 kVac (3 way) |
| RESPONSE TIME: | 1,2 ms |
| OPERATING TEMPERATURE: | -10..+65°C |
| DIMENSION: | 35 x 100 x 112 mm |
| CHANNELS: | 24 |
| OUTPUT TYPE: | Mosfet, max 500 mA per channel |
| RPDO: | < 1,25 ms |
