意大利 欧玛尔(OMAL.S.P.A.)自控阀门公司，是集设计与制造为一体的自主研发型阀门制造公司，在 执行器和自控阀门的设计和制造方面有着30年的经验。OMAL(欧玛尔)自控阀门公司系出名门，由意大利知名工业企业BONOMI集团传人BONOMI-OMAL先生于1981年创立，并于当年推出具有划时代意义的“单气缸双活塞-拨叉式变扭矩” 气动执行器，荣获多项专利，具备“小体积-大扭矩”的突出特点，使控制更为可靠方便。依托优异的品质和先进的技术，OMAL(欧玛尔)迅速成长为欧洲拨叉式气动执行器供应商，为客户提供更为专业的自控服务。1990年，OMAL(欧玛尔)相继推出自控球阀、自控蝶阀、自控 角座阀等多品种全型号自控阀门，1998年，OMAL(欧玛尔)VIP梭阀荣获欧洲工业设计金奖。凭借着对技术与品质的执着追求，OMAL执行器和自控阀门已处于欧洲领先地位，也由最初的专业执行器制造商，成长为欧洲著名的自控阀门公司。对品质的严格要求和对技术的不断创新，是OMAL产品领先世界的重要原因。OMAL自控阀门产品覆盖所有的工业领域，能满足各种严酷恶劣的条件及高标准用户的要求，其产品有：球阀、蝶阀、角座阀、梭阀以及执行器等。

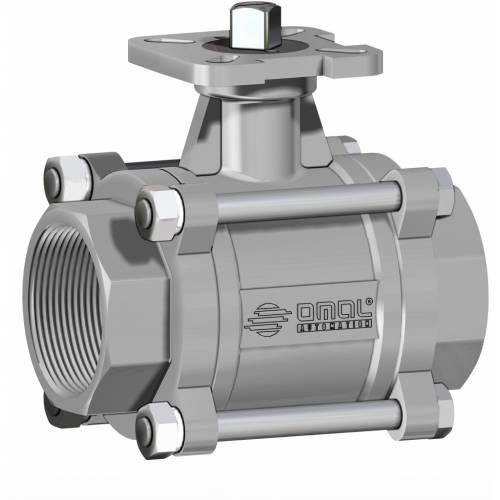

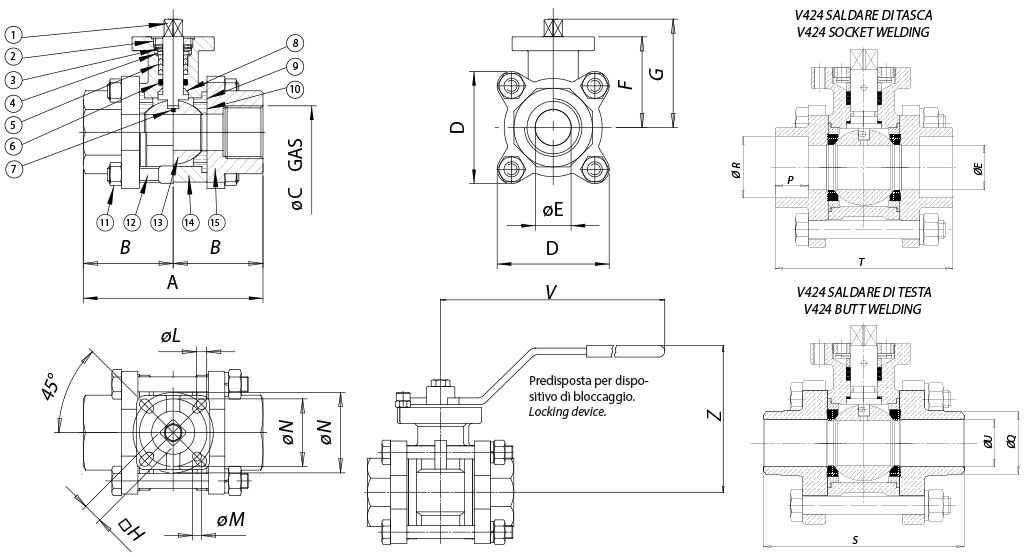

DIMENSIONS | ||||||||||||||||||||
SIZE | A | B | øC | D | øE | F | G | □H | øL | øM | øN | P | øQ | øR | S | T | øU | V | Z | |
| DN [mm] | [inch] | |||||||||||||||||||
| DN 8 | 1/4" | 65 | 32,5 | 1/4” | 48,8 | 11,5 | 42 | 49 | 9 | 6 | 6 | 36-42 | 13 | 14,8 | 14,3 | 70 | 65 | 7,7 | 150 | 78,5 |
| DN 10 | 3/8" | 65 | 32,5 | 3/8” | 48,8 | 12,6 | 42 | 49 | 9 | 6 | 6 | 36-42 | 13 | 18,5 | 17,7 | 70 | 65 | 10,8 | 150 | 78,5 |
| DN 15 | 1/2" | 75 | 37,5 | 1/2” | 48,8 | 15 | 42 | 49 | 9 | 6 | 6 | 36-42 | 16 | 21 | 22 | 75 | 75 | 13,8 | 150 | 78,5 |
| DN 20 | 3/4" | 80 | 40 | 3/4” | 50,3 | 20 | 45 | 53 | 9 | 6 | 6 | 36-42 | 16 | 28,3 | 27,5 | 90 | 80 | 18,9 | 150 | 82,5 |
| DN 25 | 1" | 90 | 45 | 1” | 64 | 25,4 | 52 | 61 | 9 | 7 | 6 | 42-50 | 17 | 35,5 | 34,3 | 100 | 90 | 24,3 | 200 | 88,5 |
| DN 32 | 1" 1/4 | 110 | 55 | 1" 1/4 | 73,4 | 32 | 57 | 66 | 9 | 7 | 6 | 42-50 | 20 | 43,7 | 43 | 110 | 110 | 32,5 | 200 | 93,5 |
| DN 40 | 1" 1/2 | 120 | 60 | 1" 1/2 | 82 | 38 | 68 | 79 | 11 | 9 | 7 | 50-70 | 20 | 49,6 | 49 | 125 | 120 | 38,1 | 250 | 106,5 |
| DN 50 | 2" | 140 | 70 | 2” | 94,3 | 50,8 | 77 | 88 | 11 | 9 | 7 | 50-70 | 22 | 63 | 61,4 | 150 | 140 | 49,2 | 250 | 115,5 |
| DN 65 | 2"1/2 | 185 | 92,5 | 2" 1/2 | 165 | 65 | 100 | 114 | 14 | 11 | 9 | 70-102 | 33 | 77,5 | 77,2 | 190 | 185 | 59 | 300 | 141,5 |
| DN 80 | 3" | 205 | 102,5 | 3” | 190 | 80 | 111 | 128 | 17 | 11 | 9 | 70-102 | 34,8 | 90,7 | 90 | 220 | 205 | 73,7 | 300 | 155,5 |
| DN 100 | 4" | 240 | 120 | 4” | 240 | 100 | 138 | 160 | 22 | 13 | 11 | 102-125 | 41 | 115,4 | 115,4 | 270 | 240 | 97,1 | 400 | 183,5 |

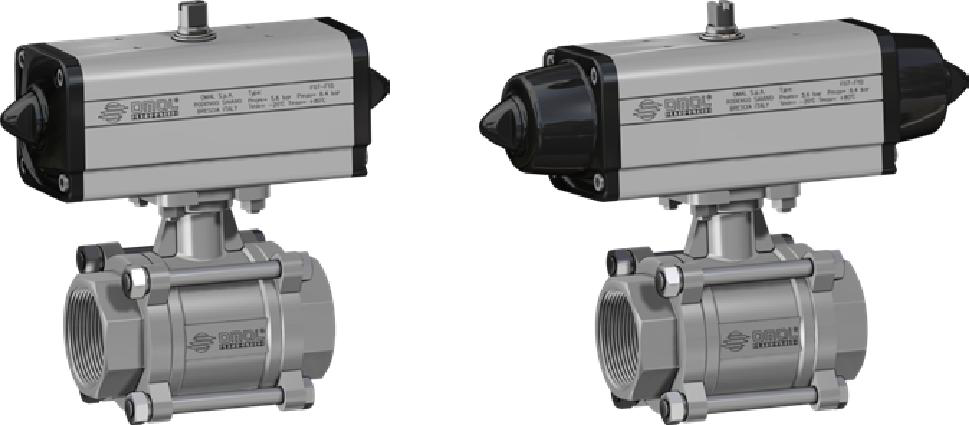

MISURA SIZE | ARTICOLO | ATTUATORE | KIT montaggio | L [mm] | H [mm] | Kg | ATEX | |
DN [mm] | [inch] | ITEM CODE | ACTUATOR | Mounting KIT | ||||
DN 8 | 1/4" | DG424H*2 | DAN0015411S | KCF042649 | 159,0 | 116,8 | 1,3 | DG424H*2YX |
DN 10 | 3/8" | DG424H*3 | DAN0015411S | KCF042649 | 159,0 | 116,8 | 1,3 | DG424H*3YX |
DN 15 | 1/2" | DG424H*4 | DAN0015411S | KCF042649 | 159,0 | 116,8 | 1,4 | DG424H*4YX |
DN 20 | 3/4" | DG424H*5 | DAN0015411S | KCF042649 | 159,0 | 119,8 | 1,5 | DG424H*5YX |
DN 25 | 1" | DG424H*6 | DAN0030411S | KCF042454 | 174,2 | 132,8 | 2,5 | DG424H*6YX |
DN 32 | 1" 1/4 | DG424H*7 | DAN0030411S | KCF042454 | 174,2 | 137,8 | 2,9 | DG424H*7YX |
DN 40 | 1" 1/2 | DG424H*8 | DAN0045412S | KCF042455 | 188,5 | 154,8 | 4,3 | DG424H*8YX |
DN 50 | 2" | DG424H*9 | DAN0060412S | KCF052456 | 198,0 | 169,0 | 5,7 | DG424H*9YX |
DN 65 | 2" 1/2 | DG424H410 | DAN0120411S | KCF073288 | 244,1 | 208,6 | 12,3 | DG424H410YX |
DN 80 | 3" | DG424H411 | DAN0240411S | KCF102734 | 313,6 | 254,7 | 17,6 | DG424H411YX |
DN 100 | 4" | DG424H412 | DAN0360411S | KCF105285 | 339,3 | 292,0 | 27,3 | DG424H412YX |
MISURA SIZE | ARTICOLO | ATTUATORE | KIT montaggio | L [mm] | H [mm] | Kg | ATEX | |
DN [mm] | [inch] | ITEM CODE | ACTUATOR | Mounting KIT | ||||
DN 8 | 1/4" | SG424H*2 | SRN0015401S | KCF042649 | 233,2 | 122,8 | 1,7 | SG424H*2YX |
DN 10 | 3/8" | SG424H*3 | SRN0015401S | KCF042649 | 233,2 | 122,8 | 1,7 | SG424H*3YX |
DN 15 | 1/2" | SG424H*4 | SRN0015401S | KCF042649 | 233,2 | 122,8 | 1,8 | SG424H*4YX |
DN 20 | 3/4" | SG424H*5 | SRN0015401S | KCF042649 | 233,2 | 125,8 | 1,9 | SG424H*5YX |
DN 25 | 1" | SG424H*6 | SRN0030402S | KCF052731 | 258,8 | 144,0 | 3,2 | SG424H*6YX |
DN 32 | 1" 1/4 | SG424H*7 | SRN0030402S | KCF052731 | 258,8 | 150,0 | 3,6 | SG424H*7YX |
DN 40 | 1" 1/2 | SG424H*8 | SRN0053401S | KCF072732 | 304,2 | 174,8 | 6,0 | SG424H*8YX |
DN 50 | 2" | SG424H*9 | SRN0060401S | KCF072732 | 338,5 | 187,6 | 7,2 | SG424H*9YX |
DN 65 | 2" 1/2 | SG424H410 | SRN0120401S | KCF105284 | 409,6 | 242,7 | 16,6 | SG424H410YX |
DN 80 | 3" | SG424H411 | SRN0240401S | KCF122735 | 520,5 | 279,0 | 24,3 | SG424H411YX |
DN 100 | 4" | SG424H412 | SRN0360401S | KCF125286 | 613,0 | 322,0 | 34,6 | SG424H412YX |
