施耐德断进口路器AMulti 9

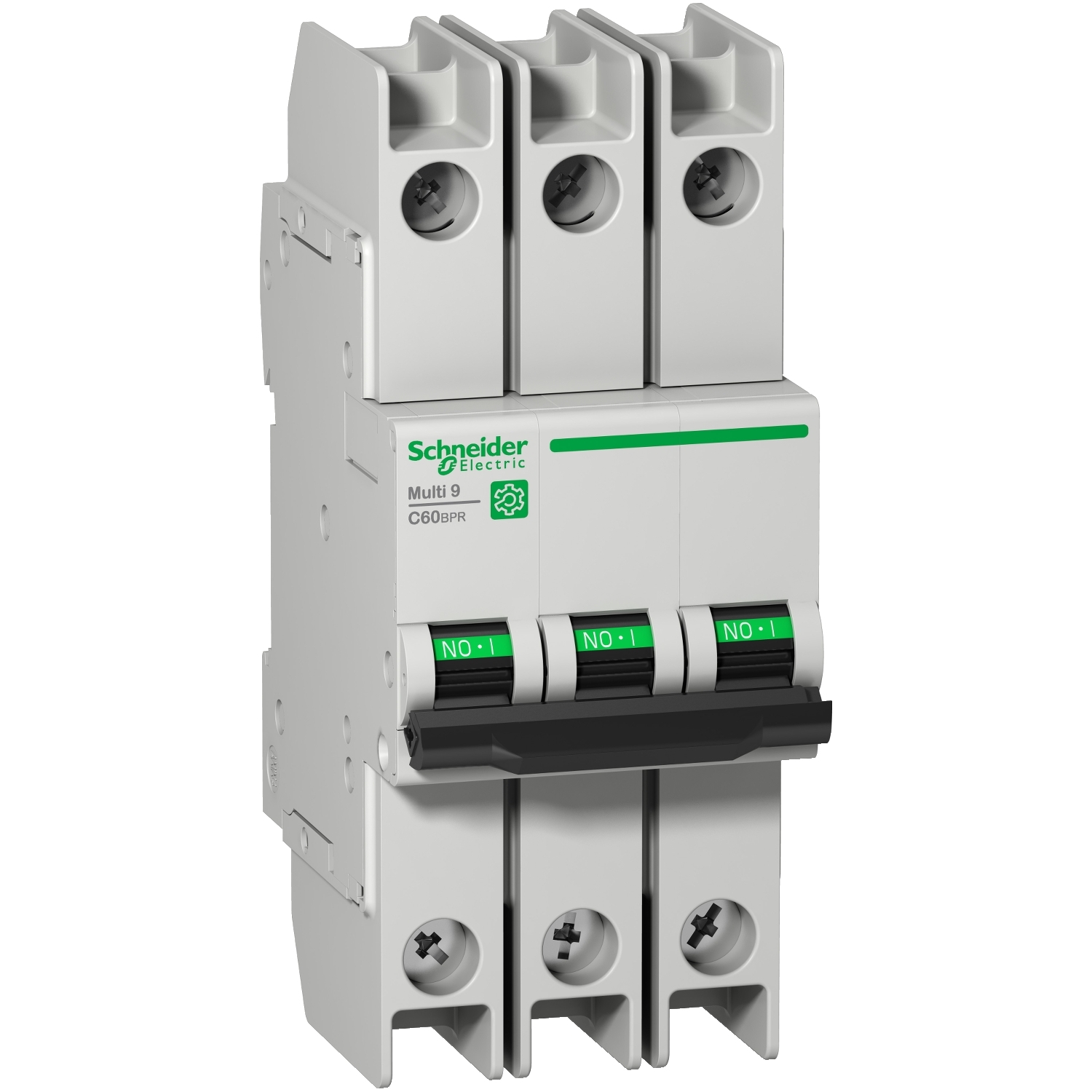

施耐德断进口路器Multi 9 - C60断路器

特性

符合标准：UL489，CSA C22.2，GB14048.2，IEC60947-2

产品认证：UL，CSA，CCC，CE

产品极数：1P，2P，3P

额定电压：AC120V/240V，AC480Y/277Y，DC60V/125V

额定电流：0.5-35A

脱扣曲线：C/D

额定冲击耐受电压：6kV

污染等级：3

限流等级：3

接线端子类型：隧道式，环形
产品质保期为18个月

优势

符合UL489和CSA C22.2标准，支持隧道式和环形两种接线端子，支持交流和直流两种电压环境，支持-30~+70℃环境工作温度。

应用

机械配套行业出口的电气设备中，作为配电线路保护断路器使用，为电气设备的主配电回路、插座回路、内部电机回路、内部HACR、加热、制冷、通风回路和外接负载回路等提供短路和过载保护功能。

M9F21340 : Multi 9 - C60SP - MCB - 3P - 40 A - B Curve - 480Y/277 V - 5 kA - UL 1077. Multi 9 - C60SP - MCB - 3P - 40 A - B Curve - 480Y/277 V - 5 kA - UL 1077

M9F52350 : Multi 9 - C60BPR - MCB - 3P - 50 A - C Curve - 240 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 3P - 50 A - C Curve - 240 V - 10 kA - UL 489 Localized EAN code : 3606481171016,

M9F52104 : Multi 9 - C60BPR - MCB - 1P - 4 A - C Curve - 277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 1P - 4 A - C Curve - 277 V - 10 kA - UL 489 Localized EAN code : 3606481170828,

M9F53306 : Multi 9 - C60BPR - MCB - 3P - 6 A - D Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 3P - 6 A - D Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN

M9F52325 : Multi 9 - C60BPR - MCB - 3P - 25 A - C Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 3P - 25 A - C Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN

M9F21306 : Multi 9 - C60SP - MCB - 3P - 6 A - B Curve - 480Y/277 V - 10 kA - UL 1077. Multi 9 - C60SP - MCB - 3P - 6 A - B Curve - 480Y/277 V - 10 kA - UL 1077

M9F52210 : Multi 9 - C60BPR - MCB - 2P - 10 A - C Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 2P - 10 A - C Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN code : 3606481170941

M9F22463 : Multi 9 - C60SP - MCB - 4P - 63 A - C Curve - 480Y/277 V - 5 kA - UL 1077. Multi 9 - C60SP - MCB - 4P - 63 A - C Curve - 480Y/277 V - 5 kA - UL 1077

M9F52340 : Multi 9 - C60BPR - MCB - 3P - 40 A - C Curve - 240 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 3P - 40 A - C Curve - 240 V - 10 kA - UL 489 Localized EAN code : 3606481171030,

M9F53102 : Multi 9 - C60BPR - MCB - 1P - 2 A - D Curve - 277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 1P - 2 A - D Curve - 277 V - 10 kA - UL 489 Localized EAN code : 3606481171283,

M9F52208 : Multi 9 - C60BPR - MCB - 2P - 8 A - C Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 2P - 8 A - C Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN code : 3606481170958,

M9F53140 : Multi 9 - C60BPR - MCB - 1P - 40 A - D Curve - 240 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 1P - 40 A - D Curve - 240 V - 10 kA - UL 489 Localized EAN code : 3606481171184,

M9F21201 : Multi 9 - C60SP - MCB - 2P - 1 A - B Curve - 480Y/277 V - 10 kA - UL 1077. Multi 9 - C60SP - MCB - 2P - 1 A - B Curve - 480Y/277 V - 10 kA - UL 1077 Stock Code : Stock - Normally stocked in distribution

M9F52140 : Multi 9 - C60BPR - MCB - 1P - 40 A - C Curve - 240 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 1P - 40 A - C Curve - 240 V - 10 kA - UL 489 Localized EAN code : 3606481170736

M9F52206 : Multi 9 - C60BPR - MCB - 2P - 6 A - C Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 2P - 6 A - C Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN code : 3606481170965

M9F52201 : Multi 9 - C60BPR - MCB - 2P - 1 A - C Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 2P - 1 A - C Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN code : 3606481170996

M9F22313 : Multi 9 - C60SP - MCB - 3P - 13 A - C Curve - 480Y/277 V - 10 kA - UL 1077. Multi 9 - C60SP - MCB - 3P - 13 A - C Curve - 480Y/277 V - 10 kA - UL 1077

M9F52245 : Multi 9 - C60BPR - MCB - 2P - 45 A - C Curve - 240 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 2P - 45 A - C Curve - 240 V - 10 kA - UL 489 Localized EAN code : 3606481170873

M9F53163 : Multi 9 - C60BPR - MCB - 1P - 63 A - D Curve - 240 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 1P - 63 A - D Curve - 240 V - 10 kA - UL 489 Localized EAN code : 3606481171153

M9F53208 : Multi 9 - C60BPR - MCB - 2P - 8 A - D Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 2P - 8 A - D Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN code : 3606481171405

M9F53335 : Multi 9 - C60BPR - MCB - 3P - 35 A - D Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 3P - 35 A - D Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN code : 3606481171498,

M9F53215 : Multi 9 - C60BPR - MCB - 2P - 15 A - D Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 2P - 15 A - D Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN code : 3606481171382

M9F52130 : Multi 9 - C60BPR - MCB - 1P - 30 A - C Curve - 277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 1P - 30 A - C Curve - 277 V - 10 kA - UL 489 Localized EAN code : 3606481170750

M9F21363 : Multi 9 - C60SP - MCB - 3P - 63 A - B Curve - 480Y/277 V - 5 kA - UL 1077. Multi 9 - C60SP - MCB - 3P - 63 A - B Curve - 480Y/277 V - 5 kA - UL 1077

M9F52315 : Multi 9 - C60BPR - MCB - 3P - 15 A - C Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 3P - 15 A - C Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN code : 3606481171085,

M9F53120 : Multi 9 - C60BPR - MCB - 1P - 20 A - D Curve - 277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 1P - 20 A - D Curve - 277 V - 10 kA - UL 489 Localized EAN code : 3606481171221,

M9F53204 : Multi 9 - C60BPR - MCB - 2P - 4 A - D Curve - 480Y/277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 2P - 4 A - D Curve - 480Y/277 V - 10 kA - UL 489 Localized EAN code : 3606481171429,

M9F21332 : Multi 9 - C60SP - MCB - 3P - 32 A - B Curve - 480Y/277 V - 10 kA - UL 1077. Multi 9 - C60SP - MCB - 3P - 32 A - B Curve - 480Y/277 V - 10 kA - UL 1077

M9F53130 : Multi 9 - C60BPR - MCB - 1P - 30 A - D Curve - 277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 1P - 30 A - D Curve - 277 V - 10 kA - UL 489 Localized EAN code : 3606481171207

M9F52102 : Multi 9 - C60BPR - MCB - 1P - 2 A - C Curve - 277 V - 10 kA - UL 489. Multi 9 - C60BPR - MCB - 1P - 2 A - C Curve - 277 V - 10 kA - UL 489 Localized EAN code : 3606481170835
