GEFRAN指示器和报警单元 Temperature, position linear inputs 40T96 Indicator/Alarm Unit
  • GEFRAN指示器和报警单元 Temperature, position linear inputs 40T96 Indicator/Alarm Unit
  • GEFRAN指示器和报警单元 Temperature, position linear inputs 40T96 Indicator/Alarm Unit

GEFRAN指示器和报警单元 Temperature, position linear inputs 40T96 Indicator/Alarm Unit

Overview

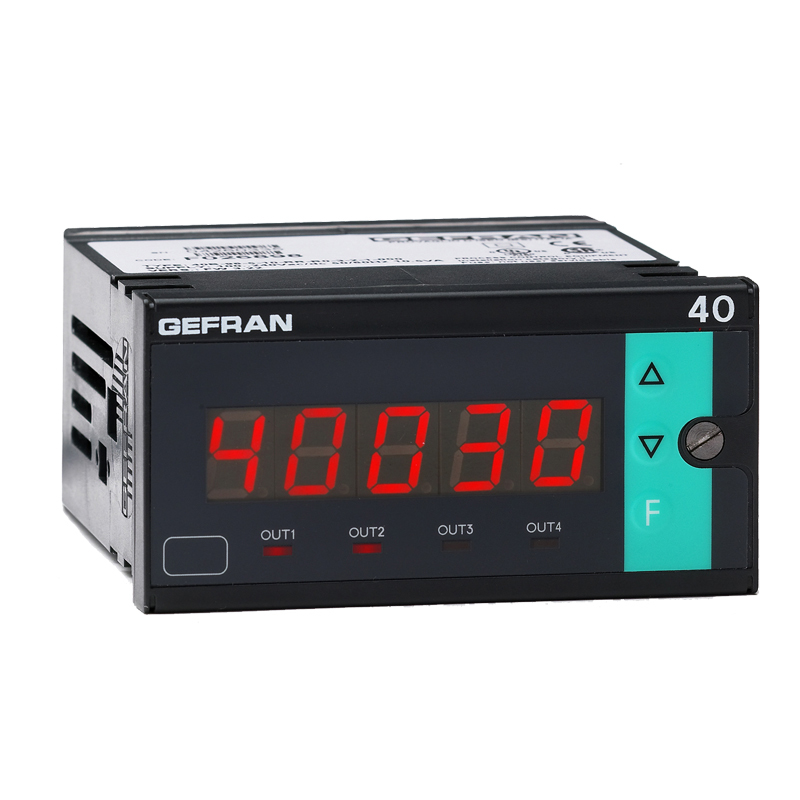

基于微处理器使用表面贴装技术制作的96x48 (1/8 DIN)尺寸指示器。仪表有个聚酯膜面板(保证IP65),有3个按键,一个3/4位数显示格式,3个用于输出状态的指示LED。

可从各种传感器中选择输入信号:

  • 热电偶类型J, K, R, S, T, B, E, N, L GOST, U, G, D, C

  • 热电阻Pt100, Pt100J (日标) 2 / 3线。

  • PTC 和NTC热敏电阻

  • 线性输入(0 – 60)/(12- 60)mV, (0 -20)/(4 -20)mA, (0- 10)/(2 -10)/(0 – 5)/(1-5)/(0 -1)/(0.2 -1)V

使用面板按键选择模式。
仪表的基本版本可用的,拓展版本有2个输出继电器(2R)。
仪表最多4个输出,机械式继电器(5A,250Vac/30Vdc cosφ=1)或逻辑输出(0 到 11Vdc).
一个数字量输入(24Vdc/5mA)可用(复位、保持、闪烁、峰值处理或阀值释放)和一个0...10V或0/4 - 20mA (最大. 500)输出可用于转发测量输入信号。
转发输出,数字量输入和第三个输出同时使用。
串口通信选项(使用RS485标准)允许通过两种协议连接到监控系统和PLC:杰佛伦 CENCAL和 MODBUS RTU。最终,一个触发点(替代输出1)可适应驱动240V下最大1A的阻性负载。
仪表通过把参数分组到功能块里(CGF表示报警滞后,Inp表示输入,Out表示输出...)和简化数据录入菜单使编辑变的容易。

配置更简单甚至更进一步使用电脑编程工具它由连接电缆和运行在windows系统的菜单引导程序组成(见技术数据表:GF_eXpress)。
     一个配置的个人软件保护代码(密码保护)用来限制编辑和显示配置参数的等级。

Description

  • 面板配置输入

  • 个人密码保护

  • 可由串口配置

  • 内置变送器电源

  • 可自定义热电偶线性化

  • 工程单位内部线性化

  • 提供常用物理单位

  • 采样时间和行程干预可编辑在15和120msec之间,解析度在4000到16000步之间。

  • 转发被测量信号

  • 4个触发点完全由键盘配置

  • 光电隔离的RS485串口线

  • 协议:杰佛伦 CENCAL 或MODBUS RTU

  • 电脑GF_eXpress程序包快速配置


  • 描述
  • 参数
  • 设备图片

F026739    40T96-3-00-2R00-000

F028404    40T96-3-00-2R00-001

F000947    40T96-3-00-RD00-001 (EX 40T96-3-00-RD001

F000945    40T96-3-00-RR00-000 (EX 40T96-3-00-RR000

F000946    40T96-3-00-RR00-001 (EX 40T96-3-00-RR001

F050131    40T96-3-00-RR00-020

F052914    40T96-3-00-RR00-021

F029688    40T96-3-00-RR00-101

F028159    40T96-3-00-RR00-200

F026793    40T96-3-00-RR00-201

F027056    40T96-3-00-RR00-301

F028405    40T96-3-00-RRR0-000

F025524    40T96-3-00-RRR0-001 (EX 40T96-3-00-RRR01

F030571    40T96-3-00-RRR0-201

F043987    40T96-3-00-RRR0-301

F044326    40T96-3-00-RRRR-000

F030146    40T96-3-00-RRRR-001

F031465    40T96-3-00-T000-000

F036207    40T96-3-01-RR00-000

F028406    40T96-3-01-RR00-001

F043351    40T96-3-01-RR00-101

F029635    40T96-3-01-RR00-200

F028746    40T96-3-01-RR00-201

F049089    40T96-3-15-RR00-100

F000955    40T96-3-15-RR00-101 (EX 40T96-3-15-RR011

F026740    40T96-3-24-2R00-000

F030900    40T96-3-24-2R00-001

F041324    40T96-3-24-RDRR-100

F000948    40T96-3-24-RR00-000 (EX 40T96-3-24-RR000

F000950    40T96-3-24-RR00-001 (EX 40T96-3-24-RR001

F045172    40T96-3-24-RR00-021

F039051    40T96-3-24-RR00-100

F035324    40T96-3-24-RR00-200

F027976    40T96-3-24-RR00-201

F049088    40T96-3-24-RR00-221

F050049    40T96-3-24-RR00-321

F035045    40T96-3-24-RRR0-000

F000951    40T96-3-24-RRR0-001 (EX 40T96-3-24-RRR01

F025999    40T96-3-24-RRR0-201 (EX 40T96-3-24-RRR21

F000952    40T96-3-24-RRR0-300 (EX 40T96-3-24-RRR30

F000954    40T96-3-24-RRR0-301 (EX 40T96-3-24-RRR31

F027128    40T96-3-24-RRR0-320

F027127    40T96-3-24-RRR0-321

F032205    40T96-3-24-RRRR-000

F037478    40T96-3-99-RRR0-201

F056077    40T96-3-99-RRRR-100

F033566    40T96-3-99-RRRR-101

F024138    40T96-4-00-2R00-000

F024136    40T96-4-00-2R00-001

F029774    40T96-4-00-RD00-000

F000965    40T96-4-00-RD00-001 (EX 40T96-4-00-RD001

F040830    40T96-4-00-RD00-200

F041673    40T96-4-00-RD00-201

F055942    40T96-4-00-RDR0-000

F028945    40T96-4-00-RDR0-001

F028302    40T96-4-00-RDRR-001

F000193    40T96-4-00-RR00-000 (EX 40T96-4-00-RR000

F000194    40T96-4-00-RR00-001 (EX 40T96-4-00-RR001

F027836    40T96-4-00-RR00-020

F027200    40T96-4-00-RR00-021

F000956    40T96-4-00-RR00-100 (EX 40T96-4-00-RR010

F000957    40T96-4-00-RR00-101 (EX 40T96-4-00-RR011

F027535    40T96-4-00-RR00-120

F026566    40T96-4-00-RR00-121

F000958    40T96-4-00-RR00-200 (EX 40T96-4-00-RR020

F000960    40T96-4-00-RR00-201 (EX 40T96-4-00-RR021

F027621    40T96-4-00-RR00-220

F032136    40T96-4-00-RR00-221

F028366    40T96-4-00-RR00-300

F000961    40T96-4-00-RR00-301 (EX 40T96-4-00-RR031

F059738    40T96-4-00-RR00-320

F027259    40T96-4-00-RR00-321

F000962    40T96-4-00-RRR0-000 (EX 40T96-4-00-RRR00

F000195    40T96-4-00-RRR0-001 (EX 40T96-4-00-RRR01

F028233    40T96-4-00-RRR0-021

F034774    40T96-4-00-RRR0-100

F028878    40T96-4-00-RRR0-101

F027057    40T96-4-00-RRR0-200

F000963    40T96-4-00-RRR0-201 (EX 40T96-4-00-RRR21

F028254    40T96-4-00-RRR0-221

F027533    40T96-4-00-RRR0-300

F000964    40T96-4-00-RRR0-301 (EX 40T96-4-00-RRR31

F041327    40T96-4-00-RRR0-321

F027184    40T96-4-00-RRRR-000

F026532    40T96-4-00-RRRR-001

F043688    40T96-4-00-RRRR-020

F055282    40T96-4-00-RRRR-021

F033666    40T96-4-00-RRRR-100

F029030    40T96-4-00-RRRR-101

F062628    40T96-4-00-T000-000

F036351    40T96-4-00-T000-001

F054114    40T96-4-00-T000-020

F054115    40T96-4-00-T000-021

F000202    40T96-4-01-RR00-000 (EX 40T96-4-01-RR000

F000203    40T96-4-01-RR00-001 (EX 40T96-4-01-RR001

F046756    40T96-4-01-RR00-020

F031336    40T96-4-01-RR00-021

F000984    40T96-4-01-RR00-100 (EX 40T96-4-01-RR010

F000204    40T96-4-01-RR00-101 (EX 40T96-4-01-RR011

F041204    40T96-4-01-RR00-120

F000985    40T96-4-01-RR00-200

F000986    40T96-4-01-RR00-201 (EX 40T96-4-01-RR021

F042913    40T96-4-01-RR00-220

F045834    40T96-4-01-RR00-221

F035900    40T96-4-01-RR00-300

F000987    40T96-4-01-RR00-301 (EX 40T96-4-01-RR031

F040703    40T96-4-01-RR00-321

F031789    40T96-4-01-RRR0-000

F000988    40T96-4-01-RRR0-001 (EX 40T96-4-01-RRR01

F000989    40T96-4-01-RRR0-100 (EX 40T96-4-01-RRR10

F035099    40T96-4-01-RRR0-101

F000990    40T96-4-01-RRR0-200 (EX 40T96-4-01-RRR20

F036677    40T96-4-01-RRR0-201

F051112    40T96-4-01-RRR0-221

F029805    40T96-4-01-RRR0-300

F000991    40T96-4-01-RRR0-301 (EX 40T96-4-01-RRR31

F029126    40T96-4-01-RRRR-000

F028075    40T96-4-01-RRRR-001

F048886    40T96-4-01-RRRR-101

F049488    40T96-4-01-T000-201

F000992    40T96-4-15-RR00-000 (EX 40T96-4-15-RR000

F000205    40T96-4-15-RR00-001 (EX 40T96-4-15-RR001

F027856    40T96-4-15-RR00-020

F027857    40T96-4-15-RR00-021

F049125    40T96-4-15-RR00-100

F041619    40T96-4-15-RR00-101

F034110    40T96-4-15-RR00-200

F027569    40T96-4-15-RR00-201

F042069    40T96-4-15-RR00-221

F051397    40T96-4-15-RR00-300

F025851    40T96-4-15-RR00-301 (EX 40T96-4-15-RR031

F043447    40T96-4-15-RRR0-000

F056701    40T96-4-15-RRR0-101

F056668    40T96-4-15-RRR0-300

F028453    40T96-4-15-RRRR-000

F041863    40T96-4-15-RRRR-001

F026037    40T96-4-24-2R00-000

F027010    40T96-4-24-2R00-001

F028903    40T96-4-24-RD00-300

F029397    40T96-4-24-RD00-301

F049888    40T96-4-24-RDR0-200

F000979    40T96-4-24-RDR0-201 (EX 40T96-4-24-RDR21

F026039    40T96-4-24-RDR0-321

F027122    40T96-4-24-RDRR-100

F000196    40T96-4-24-RR00-000 (EX 40T96-4-24-RR000

F000197    40T96-4-24-RR00-001 (EX 40T96-4-24-RR001

F032917    40T96-4-24-RR00-020

F027680    40T96-4-24-RR00-021

F000969    40T96-4-24-RR00-100

F000970    40T96-4-24-RR00-101 (EX 40T96-4-24-RR011

F029246    40T96-4-24-RR00-121

F000971    40T96-4-24-RR00-200 (EX 40T96-4-24-RR020

F000973    40T96-4-24-RR00-201 (EX 40T96-4-24-RR021

F026577    40T96-4-24-RR00-220

F027980    40T96-4-24-RR00-221

F025891    40T96-4-24-RR00-300 (EX 40T96-4-24-RR030

F000198    40T96-4-24-RR00-301 (EX 40T96-4-24-RR031

F049969    40T96-4-24-RR00-320

F028750    40T96-4-24-RR00-321

F000974    40T96-4-24-RRR0-000 (EX 40T96-4-24-RRR00

F000199    40T96-4-24-RRR0-001 (EX 40T96-4-24-RRR01

F028862    40T96-4-24-RRR0-020

F052345    40T96-4-24-RRR0-021

F030027    40T96-4-24-RRR0-100

F044066    40T96-4-24-RRR0-101

F032600    40T96-4-24-RRR0-200

F000976    40T96-4-24-RRR0-201 (EX 40T96-4-24-RRR21

F000200    40T96-4-24-RRR0-300 (EX 40T96-4-24-RRR30

F000201    40T96-4-24-RRR0-301 (EX 40T96-4-24-RRR31

F027129    40T96-4-24-RRR0-321

F026744    40T96-4-24-RRRR-000

F026745    40T96-4-24-RRRR-001

F043687    40T96-4-24-RRRR-020

F049252    40T96-4-24-RRRR-021

F050097    40T96-4-24-RRRR-100

F027120    40T96-4-24-RRRR-101

F027126    40T96-4-24-T0R0-301

F027130    40T96-4-24-T0R0-320

F069593    40T96-4-99-RD00-200

F055806    40T96-4-99-RDR0-300

F061048    40T96-4-99-RDR0-301

F029275    40T96-4-99-RR00-000

F028454    40T96-4-99-RR00-001

F052107    40T96-4-99-RR00-020

F031409    40T96-4-99-RR00-021

F046994    40T96-4-99-RR00-100

F046238    40T96-4-99-RR00-101

F037532    40T96-4-99-RR00-120

F034060    40T96-4-99-RR00-200

F028494    40T96-4-99-RR00-201

F056048    40T96-4-99-RR00-221

F031393    40T96-4-99-RR00-300

F030132    40T96-4-99-RR00-301

F041996    40T96-4-99-RR00-321

F029002    40T96-4-99-RRR0-000

F029001    40T96-4-99-RRR0-001

F049090    40T96-4-99-RRR0-200

F035442    40T96-4-99-RRR0-201

F032273    40T96-4-99-RRR0-300

F029862    40T96-4-99-RRR0-301

F046620    40T96-4-99-RRR0-321

F029295    40T96-4-99-RRRR-000

F029368    40T96-4-99-RRRR-001

F049556    40T96-4-99-RRRR-100

F041574    40T96-4-99-RRRR-101

F038544    40T96-4-99-RRRR-121
