All products mentioned comply with the safety category 4 acc. to EN 954. | ||||||||
| Function | Safety category according to EN 954 | 1- 2- | Output contacts; max. | Nominal voltage UN 24 V DC | Breaking current Ith [A] max. | Detachable terminals | Width [mm] | Type |
|---|---|---|---|---|---|---|---|---|

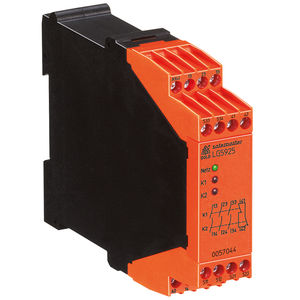

| Light curtain controller | 4 | 1; 2 | 3NO, 1NC | + | 5 A | + | 22.5 | LG 5925/900 |
| Light curtain controller | 4 | 1; 2 | 3NO, 1NC | + | 7 A | + | 22.5 | BG 5925/900 |
| Light curtain controller | 4 | 2 | 3NO | + | 5 A | + | 45 | BH 5902/01MF2 |
NO = normally open contact, NC = normally closed contact For multiple monitored light barriers in combination with further safety functions see SAFEMASTER C and SAFEMASTER M | ||||||||
