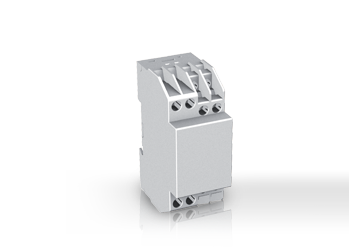

DOLD 用于楼宇自动化控制柜KU 4000

Widths from 17,5 to 140 mm

With up to 64 connection terminals

With captive plus-minus-terminal screws or with cage clamps

Safe connection of max. 2 connection wires of different cross section

Terminal blocks machine solderable on PCBs

Available with BUS-pluggable connections, e.g. KNX, RJ45

For DIN-rail or surface screw mounting

Available with 50 A high current terminals

Available with removable front plate

Description	max. number of terminals	width [mm]	height [mm]	depth [mm]	Type
Enclosures for consumer units - Enclosure Series KU4000 to DIN 43 880

Insulated Enclosure for installation in distribution cabinets or surface mounting	4	8.8	89	58	KU 4085
Insulated Enclosure for installation in distribution cabinets or surface mounting	8	17.5	87	58	KU 4086
Insulated Enclosure for installation in distribution cabinets or surface mounting	8	17.5	90	58	KU 4087
Insulated Enclosure for installation in distribution cabinets or surface mounting	16	35	90	58	KU 4088
Insulated Enclosure for installation in distribution cabinets or surface mounting	24	52.5	90	58	KU 4084
Insulated Enclosure for installation in distribution cabinets or surface mounting	64	140	90	59	KU 4091
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	8	17.5	90	58	KU 4037
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	16	35	90	58	KU 4038
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	32	70	90	58	KU 4039
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	32	70	90	74.5	KU 4052
Insulated Enclosure for installation in distribution cabinets or surface mounting, with plug-in relay-module-carrier	32	70	90	74.5	KU 4059
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	48	105	90	59	KU 4040
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	64	140	90	59	KU 4041
Insulated Enclosure for installation in distribution cabinets or surface mounting, with plug-in relay-module-carrier with cage clamp terminals	64	140	90	74.5	KU 4054
Insulated Enclosure for installation in distribution cabinets or surface mounting	12	35	90	58	KU 4088
Insulated Enclosure for installation in distribution cabinets or surface mounting	24	140	90	59	KU 4091
Insulated Enclosure for installation in distribution cabinets or surface mounting	28	70	90	58	KU 4089
Insulated Enclosure for installation in distribution cabinets or surface mounting	32	105	90	59	KU 4090
Insulated Enclosure for installation in distribution cabinets or surface mounting, with high current terminals and flat terminals	32	70	90	58	KU 4088
Insulated Enclosure for installation in distribution cabinets or surface mounting, with high current terminals and flat terminals	32	70	90	58	KU 4089
Insulated Enclosure for installation in distribution cabinets or surface mounting, with high current terminals and flat terminals	48	105	90	59	KU 4090
Insulated Enclosure for installation in distribution cabinets or surface mounting, with plug-in relay-module-carrier	64	140	90	74.5	KU 4061
