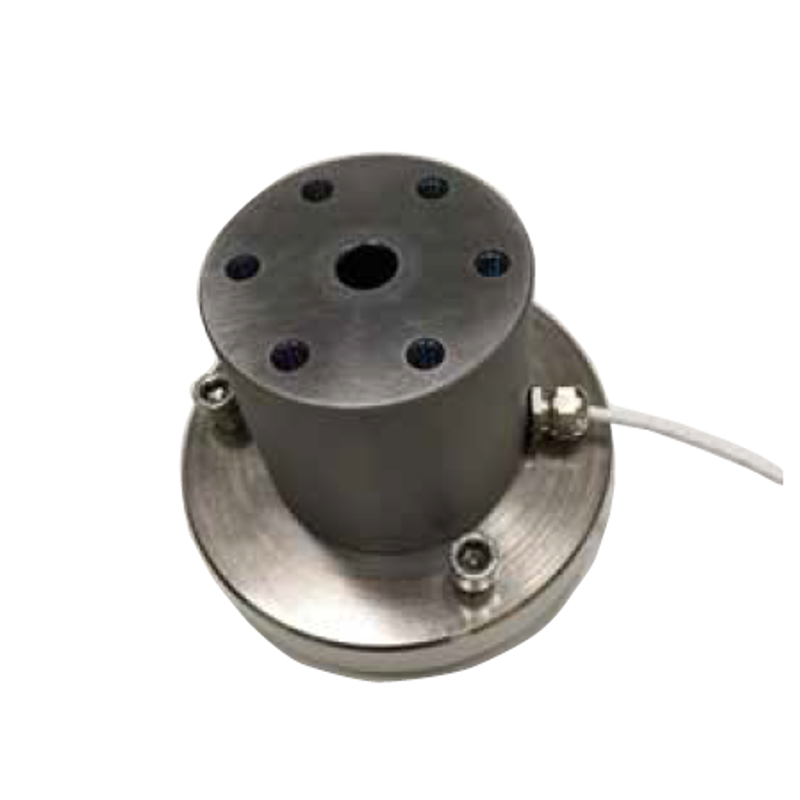

GEFRAN杰弗伦力量转换传感器IN Sensor Nozzle pressure sensor

Overview

The IN Sensor measure in the injection moulding machine the nozzle pressure compare to the injection pressure.

This is especially important in processes according to ISO9000. The Nozzle pressure sensor is mounted with magnetic force.

The nozzle injector of the injection moulding machine press directly on the nozzle adapter which protects the sensor against damage. After that the IN Sensor will be loaded with the melt of the injection pressure.

The Heater band warms the IN Sensor up to 230°C so that the melt in the conical chamber remains liquide.

This allows multiple measurements with different injection pressure.

Description

Measurements up to 4000bar nozzle pressure and melt temperature of 400°C.
Multishot measurements at temperatures <230°C with different levels of pressure.
Simple magnetic installation without screws.
Combine the IN Sensor together with the Nozzle touch force sensor.
Ideal for service and development (measurements during operation are not possible).
Scope of delivery: IN Sensor, Controle and display device, Heater band, Nozzle adapter, Magnetic adap¬ter, Magnetic base and carrying case.

F053126 IN0-A-6-H-B02D-1-4-0 2130X000X00

F068281 IN0-A-6-M-B01M-1-4-0 2130X000X00

F066019 IN0-A-6-M-B02C-1-4-0 2130X000X00

F062303 IN0-A-6-M-B07C-1-4-0 2130X000X00

F069737 IN0-S-6-H-B02D-1-4-0 2130X000F00

F056251 IN1-A-6-M-B01M-1-4-D 2130X000X00

F067247 IN1-A-6-M-B07C-1-4-D 2130X000X00

F052941 IN1-A-6-M-B07C-4-4-D 2130X000X00

F055452 IN1-B-6-H-B05C-1-4-D-0-E 2130X000X00

F041116 IN1-M-6-H-B05C-1-4-D 2130X000X00

F054681 IN1-M-6-H-P15C-1-4-F 2130X000X00

F057173 IN1-M-6-M-B01M-1-3-D 2130X000X00

F040636 IN1-M-6-M-B01M-1-4-D 2130X000X00

F036974 IN1-M-6-M-B01M-1-4-D-0-E 2130X000X00

F039204 IN1-M-6-M-B01M-4-4-D 2130X000X00

F035322 IN1-M-6-M-B02C-1-4-D 2130X000X00

F033619 IN1-M-6-M-B05C-1-4-D 2130X000X00

F039205 IN1-M-6-M-B05C-4-4-D 2130X000X00

F036770 IN1-M-6-M-B07C-1-4-D 2130X000X00

F065141 IN1-M-6-M-B07C-1-4-F 2130X000X00

F056261 IN1-M-6-M-B35D-1-3-F 2130X000X00

F035603 IN1-M-6-M-B35D-1-4-D 2130X000X00

F043567 IN1-S-6-H-B01C-1-4-D 2130X000X00

F043571 IN1-S-6-H-B01M-1-4-D 2130X000X00

F043569 IN1-S-6-H-B02C-1-4-D 2130X000X00

F043570 IN1-S-6-H-B05C-1-4-D 2130X000X00

F038768 IN1-S-6-H-B07C-1-4-D-0-E 2130X000X00

F035924 IN1-S-6-H-P15C-1-4-D 2130X000X00

F039046 IN1-S-6-M-B01C-1-4-D 2130X000X00

F039203 IN1-S-6-M-B01M-1-4-D 2130X000X00

F068464 IN1-S-6-M-B01M-1-4-E 2130X000X00

F040650 IN1-S-6-M-B02C-1-4-D 2130X000X00

F045356 IN1-S-6-M-B05C-1-4-D 2130X000X00

F044214 IN1-S-6-M-B07C-1-4-D 2130X000X00

F036469 IN1-S-6-M-B35D-1-4-D 2130X000X00

F059626 IN1-S-6-M-P05M-1-4-D 2130X000X00

F059735 IN1-S-6-M-P10M-1-3-F-0-E 2130X000X00

F035925 IN1-S-6-M-P10M-1-4-D 2130X000X00

F065419 IN2-A-6-M-P03M-1-4-D-0-E 2130X000X00

F056446 IN2-S-6-H-B05C-1-4-D 2130X000X00

F056447 IN2-S-6-H-B07C-1-4-D 2130X000X00

F056444 IN2-S-6-H-B35D-1-4-D 2130X000X00

F062533 IN2-S-6-M-B01M-1-3-D 2130X000X00

F052555 IN2-S-6-M-B01M-1-4-D 2130X000X00

F054353 IN2-S-6-M-B05C-1-4-D 2130X000X00

F049473 IN2-S-6-M-B07C-1-4-D 2130X000X00

F049811 IN2-S-6-M-B35D-1-4-D 2130X000X00

F049812 IN2-S-6-M-B35D-1-5-D 2130X000X00

F063734 IN2-S-6-M-B35U-1-4-D 2130X000X00

F069295 IN-4000-S-030-H-D-3

F065938 IN-4000-S-030-S-D-2
